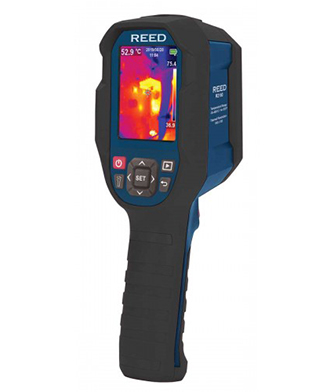

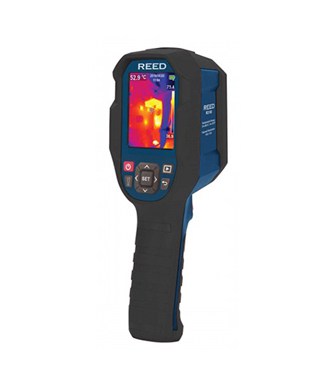

REED R2160 Thermal Imaging Camera
$549.00
Features a rugged IP65 rated double-molded housing and a 160 x 120 9Hz infrared sensor with 0.05°C thermal sensitivity.
Description
Details
Specifications
Included
Applications
Documentation
Details
REED R2160 Offers
This thermal imaging camera features a 160 x 120 (19,200 pixels) infrared sensor that can detect temperatures between 14 and 752°F (-10 and 400°C). The R2160 has the ability to display hot and cold spot temperatures on a 2.8″ color LCD and allows a user to choose from 5 different color palettes.
Features
- 160 x 120 infrared resolution (19,200 pixels)
- 2.8″ color TFT Display
- Built-in LED flashlight
- Choice of 5 color palettes
- High and Low temperature spot and alarm indicators
- Dustproof and 6.5′ (2m) drop tested
- Rechargeable li-ion battery
- Tripod mountable for continuous long-term monitoring
- View stored data with included software
- Low battery indication and auto shut off
Specifications
REED R2160 Specifications
| Imaging and Optical Specifications | |
| Field of View (FOV) | 56 x 42° |
| Minimum Focus Distance | 0.82′ (0.25m) |
| Spatial Resolution | (IFOV) 11mrad |
| Thermal Sensitivity (NETD) | <0.05°C (50mK) |
| Image Capture Frequency | 9Hz |
| Focus | Fixed |
| Measurement | |
| Temperature Range | 14 to 752°F (-10 to 400°C) |
| Accuracy | ±3.6°F (2°C) or ±2% of reading |
| Resolution | 0.1°F/°C |
| Detector Specifications | |
| Detector Type | Uncooled microbolometer, Focal plane array (FPA) |
| Spectral Range | 8 to 14μm |
| IR Resolution | 160 x 120 (19,200 pixels) |
| Image Presentation and Measurement Analysis | |
| Display | 2.8″ color TFT |
| Color Palettes | 5 (Iron/Rainbow/Gray/Red-White/White-Blue) |
| Center Spot | Yes |
| Emissivity | Adjustable (0.01 to 0.99) |
| Temperature Alarm Indicators | High/Low (user adjustable) |
| Automatic Hot/Cold Detection | Auto hot or cold spot-meter markers |
| General Specifications | |
| Display Resolution | 320 x 240 pixels |
| Image Format | BMP |
| LED Flashlight | Yes |
| External Memory | Micro SD card |
| Auto Shut-Off | Yes (user adjustable 5/10/30 minutes) |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 3.7V/5000mAh rechargeable Li-ion battery |
| Battery Life | Approximately 6 hours |
| Charging System | In camera |
| Charge Time | 4 hours |
| PC Connectivity | USB Cable (Type-C) |
| Software | Yes (download from website) |
| Software OS Compatability | Windows 7/8/10 |
| Supported Languages | English and French |
| Product Certifications | CE, IP65, 6.5′ (2m) drop test |
| Temperature | Operating: 32 to 122°F (0 to 50°C) Storage: -4 to 140°F (-20 to 60°C) |
| Operating/Storage Humidity Range | 10 to 90% |
| Maximum Operating Altitude | 6561′ (2000m) |
| Dimensions | 9.3 x 3 x 3.4″ (236 x 76 x 86mm) |
| Weight | 1lbs (454g) |
Included
What’s included with the REED R2160
- Thermal Imaging Camera
- USB Cable
- Lens Cover
- 16 GB Micro SD Card
- Soft Carrying Case
Applications
Ideal Applications for the REED R2160
- Home and building inspection
- Plant and general maintenance
- Electrical and mechanical inspection
- Predictive maintenance
- HVAC/R and plumbing
- Equine and veterinary
- Road construction
Documentation
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 7 × 5 × 3 in |
| Brand | Reed |
