Details
-

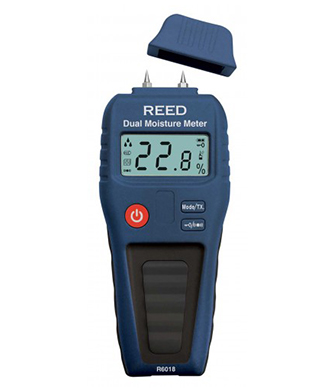

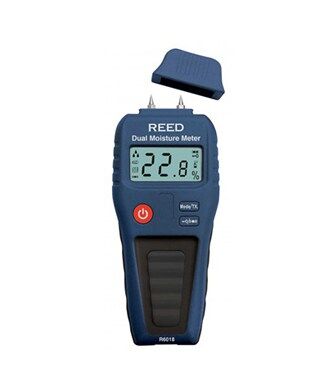

REED R6018 Offers
This dual function moisture meter is capable of detecting moisture in wood and building materials by pin or by running the instrument over the surface area (non-destructive method). The R6018 displays icons to indicate low, medium or high levels of moisture and an audible alert that increases in frequency as detected moisture level rises.
Features- Pin and Pinless functions detect moisture in wood and building materials (sheet rock, cardboard, plaster, concrete and mortar)
- Pinless measurement depth up to 1″ (25mm)
- Classifies moisture status as: low, medium and high
- Audible alert and Data Hold functions
- Built-in measurement verification and battery check
- Low battery indicator and auto shut-off
- Replaceable pins
Specifications
REED R6018 Specifications
| Measuring Ranges | Pin Mode: 5 to 50% (wood); 1.5-33% (building materials) Pinless Mode: 0 to 99.9% (wood and building materials) |
| Depth Detection | Pin mode: 0.3″ (8mm) Pinless mode: up to 1″ (25mm) |
| Accuracy | Pin Mode: ±(3% + 5 dgt.) |
| Resolution | 0.1% |
| Sensor Type | Dual Function (Contact Pins/Pinless) |
| Display | LCD Display |
| Data Hold | Yes |
| Audible Alert Indicator | Audible tone (increased intensity as moisture level rises) |
| Replaceable Pins | Yes |
| Auto Shut-off | Yes (after 2 mins) |
| Low Battery Indicator | Yes |
| Power Supply | 9V Battery |
| Product Certifications | CE |
| Operating Temperature | 41 to 113°F (5 to 45°C) |
| Storage Temperature | 32 to 122°F (0 to 50°C) |
| Operating Humidity Range | 0 to 80% |
| Dimensions | 6.7 x 2.6 x 1.2″ (170 x 65 x 30mm) |
| Weight | 4.2 oz (120g) |
Video
This dual moisture meter measures the moisture level in building materials and wood by using the integrated pins or with the non-destructive (pinless) mode. The icons on the display show low, medium or high levels of moisture when detecting moisture in drywall, plaster, concrete, mortar, and cardboard. This unit features a built-in measurement verification and has replacement pins available.
Documentation
Included
What’s included with the REED R6018
- R6018 Dual Moisture Meter
- Pins
- Protective Cap
- Battery
Applications
Ideal Applications for the REED R6018
- Construction and Building Projects
- Remediation and Restoration
- Woodworking
